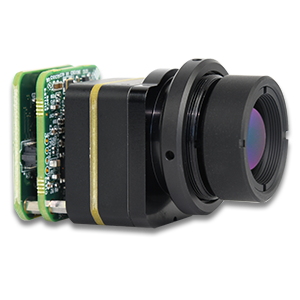

Viento-10

10 micron 640 x 512 LWIR with USB or Gig-E

With industry-standard interface options, the Viento-10 is an easy-to-integrate, VGA resolution long-wave infrared camera core that delivers best-in-class sensitivity, detail, and clarity.

Features

The Viento-10 is built around an industry-leading 10 micron pixel pitch camera core by Leonardo DRS. With custom-developed interface boards providing fully integrated USB 3.0 or GigE Vision® connectivity, the Viento-10 provides universal, out-of-the-box functionality for end-users, OEMs and integrators.

A 60 Hz frame rate, a growing suite of lens options and IP67 capability make this a highly-versatile, high-performance camera core for a wide range of thermal imaging applications.

Product Highlights
  • 10 μm 640 x 512 uncooled VOx microbolometer
  • Smallest pixel pitch LWIR available
  • Out-of-the-box functionality with USB or Gig-E interface options
  • 60 Hz frame rate, 9 Hz option available
  • Sensitivity <30 mK NETD (with filters)
  • Multiple lens models, no lens available

Applications

Models

Lens EFL/F# FOV (H° x V°) Weight(g) L x W x H(mm) Part Number
NO LENS NA Contact Sales Contact Sales Contact Sales
7.7mm, F/1.3 49° x 40° Contact Sales Contact Sales Contact Sales
15mm, F/1.2 25° x 20° Contact Sales Contact Sales Contact Sales
20mm, F/1.2 18° x 15° Contact Sales Contact Sales Contact Sales
Lens/F# FOV (H° x V°) Weight(g) L x W x H(mm) Part Number
NO LENS NA Contact Sales Contact Sales Contact Sales
7.7 mm, F/1.3 49° x 40° Contact Sales Contact Sales Contact Sales
15 mm, F/1.2 25° x 20° Contact Sales Contact Sales Contact Sales
20 mm, F/1.2 18° x 15° Contact Sales Contact Sales Contact Sales

Specifications

Detector type
Uncooled VOx Microbolometer
Array format
640 x 512
Pixel pitch
10 µm
Spectral response
LWIR
Sensitivity (NETD) @f1.0
<50 mK
Sensitivity w/ 3-D noise filter
<30 mK
Frame rate
60 Hz (9 Hz available)
Operating temperature
0º C to +70º C
Sealed lens / lens mount
IP 67
Camera control
USB3.0 UVC or GigE Vision® 2.0
Non-uniformity correction
1-point with shutter or through lens
Image enhancement
Image Contrast Enhancement (ICE™) with gain and level bias controls
External sync
Yes
Digital video
14-bit raw, 8-bit AGC, color (YUV 4:2:2)
3-D noise filter
User option to enable < 30 mK NETD
Custom lens calibration (optional)
Up to 5 available NUC tables for additional lens or temperature calibration
Operating temperature rante
0ºC to +70ºC
POwer supply USB
Via USB
Power supply GigE
POE
Power dissipation USB
2.0 W
Power dissipation GigE
4.6 W
Lens sealing
IP67
